Magnetic Track Lighting System
One 22 × 25 mm track profile, three luminaire families. Luminaires clip on and reposition without tools, which is why the system is specified for retail floors, galleries and showrooms where the layout changes after handover.
System Facts

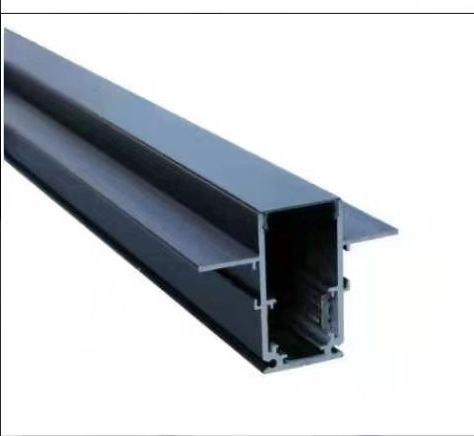

- Track cross-section — W22 × H25 mm, one profile for all luminaire families.
- CRI — 80–90 across the system.
- CCT — 3000 K / 4000 K / 6000 K.
- Power range — 6 W to 40 W per luminaire.
- Supply routes — track + connectors only, or complete luminaires with drivers installed and tested.
Luminaire Families & Specifications
| Family | Power | Dimensions (mm) |
|---|---|---|
| Flood light | 10 / 15 / 20 / 30 / 40 W | L300 / L450 / L600 / L900 / L1200 × W22 × H25 |
| Grille light | 6 / 12 / 18 / 24 W | L112 / L220 / L328 / L436 × W22 × H25 |
| Rocket track spot | 7 / 10 / 15 / 20 W | φ35×L80 / φ45×L100 / φ55×L115 / φ65×L135 — recessed box cut-out W35 × H33 |
Dimensions are production values from current tooling. Driver compatibility and finish options are confirmed with the quotation.
Applications
Retail & fashion
Floods for ambient wash, rockets for merchandise accents — one track, both jobs.
Galleries & showrooms
Grille and rocket optics aimed at exhibits; layouts re-aimed between exhibitions without an electrician.
Offices & hospitality
Continuous flood runs along circulation, spot accents over seating and display.
Series FAQ
What is the track cross-section?
The track profile measures 22 mm wide by 25 mm high. All flood, grille and rocket luminaires in the system clip onto this same profile, so layouts can be rearranged without tools.
Can we buy track profiles separately from the luminaires?
Yes. We supply track profiles, connectors and end caps separately for assemblers, or complete luminaires with drivers installed and tested.
Which colour temperatures are available?
3000 K, 4000 K and 6000 K across the system, with CRI 80-90.
Need magnetic track pricing?
Send the track run length, luminaire mix and quantities — we reply with a quotation and lead time.
