Architectural Spotlight Housings

Three recessed and surface-mounted spotlight families for hotels, retail and high-end interiors: the deep-recessed Convoy series, the one-piece curved Bauhaus series, and the Rome surface-mounted COB downlight. All built around CRI 97 COB optics.

Convoy series recessed spotlight housing

Convoy — narrow rim

Deep anti-glare body, matte-black or white, Bauhaus heatsink.

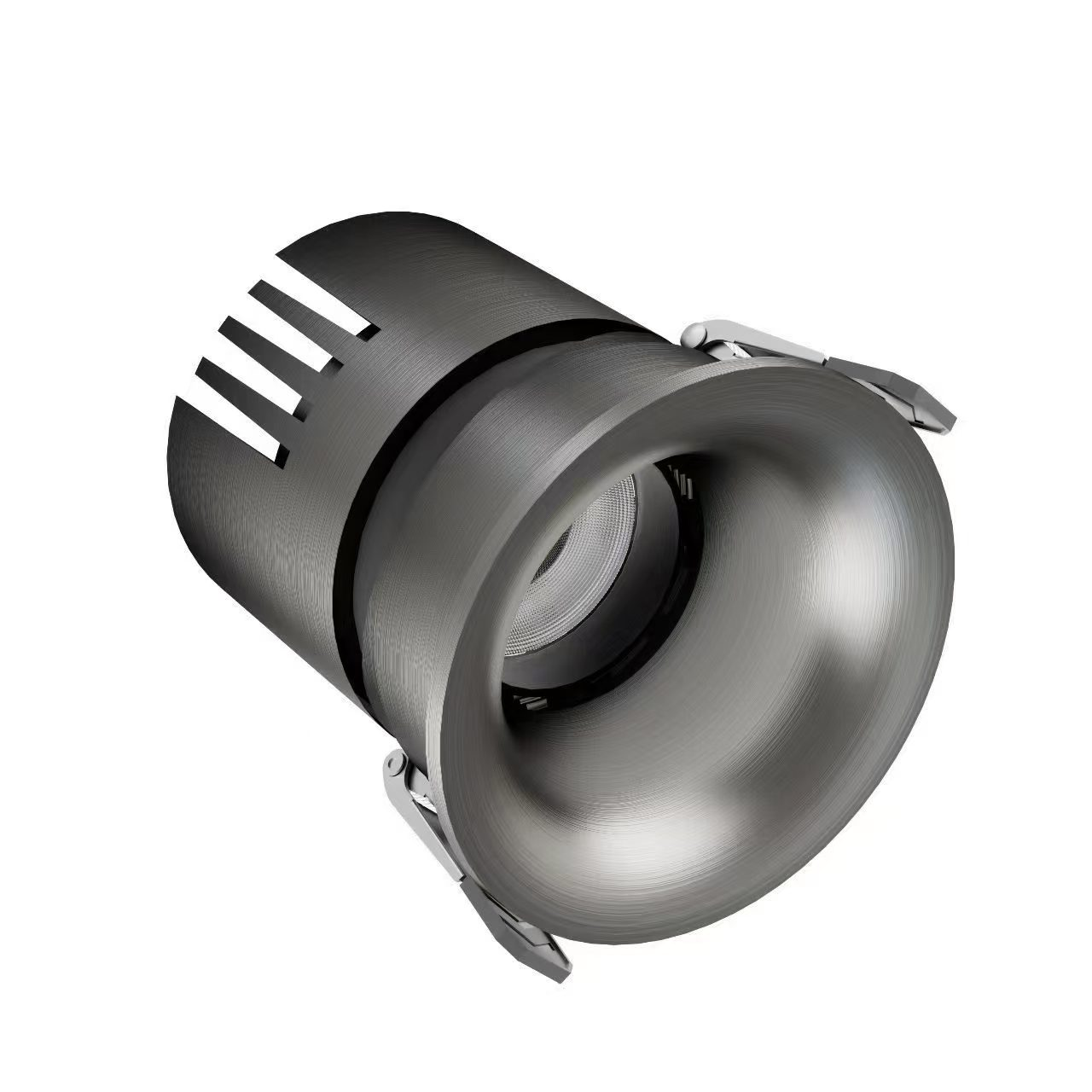

Bauhaus — curved

One-piece curved face ring and heatsink in grey, silver or gold.

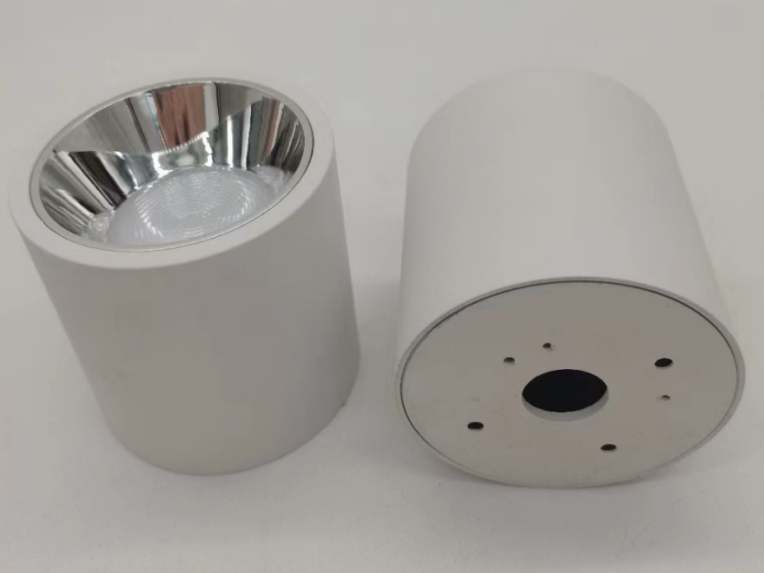

Rome — surface COB

Integrated surface-mounted cylinder, COB lens or SMD PC version.

Convoy Series (Hotel Narrow-Rim Spotlights)

CRI 97 · 2700–6000 K · matte white / matte black / gunmetal reflector with bright-silver anti-glare hood.

Size	Body Ø × H (mm)	Cut-out	Lens & beam	Power
2″ flat / curved	φ62 × 80	φ55	φ35 lens, 4/8/15/24/36/50° (1304/020/1507 bracket)	12 W
2.5″ flat / curved	φ82 × 82	φ75	φ45 lens (hard / soft / high-output), 15/24/36/50°	12 W
2.5″ deep	φ82 × 90 / 115	φ75	φ45 lens, 15/24/36/50°	15 / 20 W
3.5″ flat / curved	φ105 × 110	φ95	φ60 lens, 15/24/36/50° (030/1816/1507)	25 W

Bauhaus Series (Great-Wall & X6 Curved)

CRI 97 · face ring and heatsink in Bauhaus grey / silver / gold as a one-piece curved unit.

Model	Face Ø × H (mm)	Cut-out	Lens & beam	Power
2″ Great-Wall curved	65 × 75	φ55	φ35, 4/8/15/24/36/50°	10 W
2.5″ Great-Wall curved	82 × 80	φ75	φ35, 4/8/15/24/36/50°	12 W
2″ X6 curved	65 × 55	φ55	φ35, 15/24/36/50°	10 W
2.5″ X6 curved	85 × 65	φ75	φ35 or φ55 (24/36/60°)	15 W
3.5″ X6 curved	110 × 80	φ95	φ72, 36/60° (020/1507/1816/030)	20–25 W

Rome Series (Surface-Mounted COB Downlights)

CRI 97 · body black or white · reflector in matte white / matte black / bright silver / gunmetal / rose gold.

Version	Size	Face Ø × H (mm)	Power	Optics
COB lens	2.5″	80 × 81	10–12 W	15/24/36/55° (1507/020/1304)
COB lens	3.5″	90 × 95	15–18 W	24/36/55° (1507/030)
SMD PC	2.5″	80 × 81	10–12 W	White bracket 1304/020/1507
SMD PC	3.5″	90 × 95	15–18 W	White bracket

Series FAQ

What colour finishes are available?

Reflector cups in matte white, matte black, gunmetal, bright silver and rose gold; Bauhaus-series face rings and heatsinks in Bauhaus grey, silver or gold as one-piece curved units.

Which lens systems do the spotlights use?

φ35, φ45, φ55, φ60 and φ72 lens families, with beam angles from 4° to 60°, and hard / soft / high-output variants on the φ45 lens.

Applications

Hotel guest rooms & corridors

Narrow-rim Convoy bodies where the ceiling detail is visible and the aperture must stay tight.

Boutique retail

Bauhaus curved bodies as part of the interior scheme; 4° and 8° beams for jewellery and display niches.

Residences & lobbies

Rome surface COB downlights on concrete ceilings with no recess depth.
